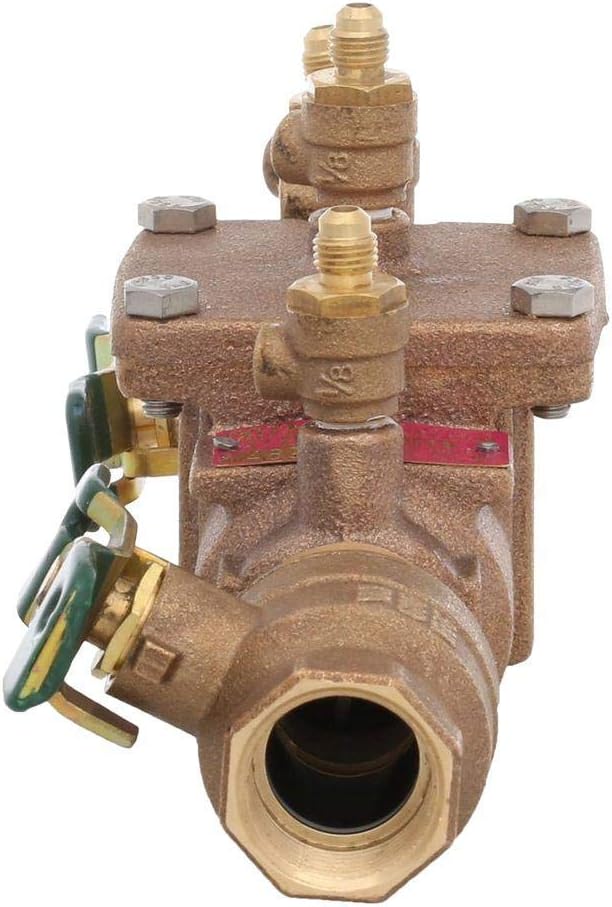

In-line Double Check Valve Assemblies 1" Fpt

This double check valve assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to back siphonage and or backpressure. It's compact modular design means easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a bronze body construction, NPT end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats. Helps prevent the backflow of contaminated water into your potable water supply Maximum working pressure 175 psi Bronze body for durability NPT threads with a quarter turn ball valve for ease of use Indoor/Outdoor: Indoor,Outdoor Maximum Working Temperature (F): 180 Maximum Pressure (psi): 175 Features: Antisiphon,Includes Check,Quarter Turn,Threaded Application: Water Supply Connection: FIP x FIP Material: Bronze Compatible Pipe Material: Multi-Purpose Valve Type: Air Admittance Product Weight (lb.): 8.65 Product Length (in.): 17.1 in Outlet Diameter (In.): 1 Product Height (in.): 5.7 Product Width (in.): 8.7 Product Depth (in.): 13.25 Inlet Diameter (In.): 1 Storage Depth: 15X7.5X5
